GaN
Full Spectrum LED Products
Cover All Visible Light and Invisible Light
GaN
Video Display
General Lighting
TV Backlight
Mobile Phone Backlight
Digital Signage
Flip Chip
Vertical
Ultraviolet
Mini
Automotive

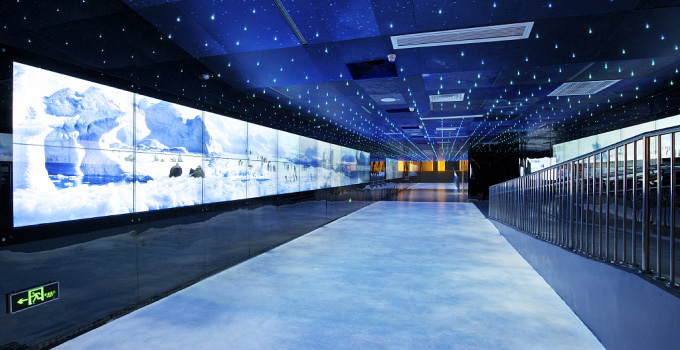

Indoor Display
Outdoor Display
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 06A | 2121/1515/1212... | P2-P4 | 0.5V/8, 10, 12nm binning | High Brightness, Long Service Life |
| 08F | 1010/2121... | P1.2-P4 | 0.3V/2nm binning | |
| 08H | 1010/2121... | P0.9-P4 | 0.3V/2nm binning |
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 08DG | 1921/2525/2727… | P4-P10 | 0.5V/10nm binning | High Brightness, Long Service Life |
| 10A | 2727/2525/3535… | P4-P10 | 0.3V/2.5nm binning | |
| 13C | 2727/3535 | P4-P16 | 0.3V/2.5nm binning | |
| 14D | 2727/3535 | P4-P16 | 0.3V/2.5nm binning | |
| 16A | 346/3535… | P4-P16 | 0.3V/2.5nm binning |
0.2W
0.5W
1W
High Voltage
Filament
Horticulture Lighting
Full-color Lighting
Full Spectrum Lighting
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 17 | 2835/3030… | General Lighting | 22-24lm@60mA | Test, High Brightness, Long Service Life |
| 18 | 2835/3030… | General Lighting | 24-26lm@60mA | |
| 27 | 2835/3030… | General Lighting | 26-28lm@60mA | |
| 30 | 2835/3030… | General Lighting | 28-32lm@60mA |
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 30 | 2835/3030… | General Lighting | 60-65lm@150mA | 100% Test, High Brightness, Long Service Life |
| 32 | 2835/3030… | General Lighting | 65-70lm@150mA | |
| 34 | 2835/3030… | General Lighting | 210lm/W@65mA-2D | |
| 35 | 2835/3030… | General Lighting | 220lm/W@65mA-2D | |
| 40 | 2835/3030… | General Lighting | 222lm/W@65mA-2D | |
| 42 | 2835/3030… | General Lighting | 223lm/W@65mA-2D | |
| 45 | 2835/3030… | General Lighting | 223lm/W@65mA-2D | |
| 46 | 2835/3030… | General Lighting | 225lm/W@65mA-2D |
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 45 | 3535… | General Lighting | ~170lm,350mA | 100% Test, Low Voltage, High Brightness, Long Service Life |
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 18(9V) | 2835/3030… | General Lighting | ~25lm@20mA | 100% Test, Low Voltage, High Brightness, Long Service Life |
| 26(9V) | 2835/3030… | General Lighting | ~27lm@20mA | |
| 34(9V) | 2835/3030… | General Lighting | ~150lm@60mA 2D | |
| 39(9V) | 2835/3030… | General Lighting | ~153lm@60mA 2D | |
| 43(9V) | 2835/3030… | General Lighting | ~170lm/W@100mA 2D | |
| 13(18V) | 2835/3030… | General Lighting | ~22lm@ 10mA | |
| 16(18V) | 2835/3030… | General Lighting | ~60lm@ 30mA | |
| 17(18V) | 2835/3030… | General Lighting | ~63lm@ 30mA | |
| 23(18V) | 2835/3030… | General Lighting | ~67lm@ 30mA | |
| 24(18V) | 2835/3030… | General Lighting | ~72lm@ 30mA | |
| 30(18V) | 2835/3030… | General Lighting | ~75lm@ 30mA | |
| 33(18V) | 2835/3030… | General Lighting | ~77Im@ 30mA |
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 10 | 3808/4015… | Filament | ~130lm/W | 100% Test and Binning, Long Service Life, IP Protection |
| 14 | 3808/4015… | Filament | ~150lm/W | |
| 17 | 3808/4015… | Filament | ~155lm/W | |
| 18 | 3808/4015… | Filament | ~160lm/W | |
| 22 | 3808/4015… | Filament | ~165lm/W | |
| 28 | 3808/4015… | Filament | ~183lm/W | |
| 30 | 3808/4015… | Filament | ~185lm/W | |
| 15(6V) | 3808/4015… | Filament | ~127lm/W | |
| 41(6V) | 3808/4015… | Filament | ~138lm/W | |
| 16(FC) | FPC Board | Flexible Filament | ~115lm/W | |
| 20(FC) | FPC Board | Flexible Filament | ~120lm/W | |
| 22(FC) | FPC Board | Flexible Filament | ~130lm/W | |
| 23(FC) | FPC Board | Flexible Filament | ~135lm/W |
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 34 | 2835/3030… | Horticulture Lighting | PPE:2.9 umol/J -2D | 100% Test, Low Voltage, High Brightness, Long Service Life |
| 35 | 2835/3030… | Horticulture Lighting | PPE:3.0 umol/J -2D | |
| 42 | 2835/3030… | Horticulture Lighting | PPE:3.05-3.1 umol/J -2D | |
| 40(FC) | PCT3030… | Horticulture Lighting | PPE:3.15 umol/J | |
| 55(VTF) | 3535… | Horticulture Lighting | PPE:2.5 umol/J |
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 19B/G | 3030/5050… | Landscape Lighting, Smart Home | 470/525nm | 100% Test, Low Voltage, High Brightness, Long Service Life |
| 20B/G | 3030/5050… | Landscape Lighting, Smart Home | 470/525nm | |
| 30B/G | 3030/5050… | Landscape Lighting, Smart Home | 455/525nm | |
| 35B/G | 3030/5050… | Landscape Lighting, Smart Home | 475/525nm |
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 30 | 3030/2835... | Circadian Lighting… | 380-420nm | 100% Test, Low Voltage, High Brightness, Long Service Life |
| 31 | 3030/2835… | Circadian Lighting… | 400-420nm | |
| 32 | 3030/2835… | Circadian Lighting… | 425-440nm, 455-475nm | |
| 35 | 3030/2835… | Circadian Lighting… | 400-420nm, 425-440nm, 460-480nm |
TV Backlight
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 30(Wide Angle) | 2835/4014/2016 | Backlight | ~88mW@60mA | 100% Test, Low Voltage, High Brightness, Long Service Life |
| 35 | 3030... | Backlight | ~160lm@400mA 2D | |
| 36 | 3030… | Backlight | ~200lm@600mA 2D | |
| 39(FC) | 3030/CSP... | Backlight | ~1300mW@700mA | |
| 40(12V) | 3030… | Backlight | ~175lm@100mA 2D |
020
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 42 | 0.4T/0.6T… | Mobile Phone/Tablet | 43-48mW | Binning, Long Service Life, 100% ESD Test |
| 36 | 0.4T/0.6T… | Mobile Phone/Tablet | 42-45mW | |
| 26 | 0.4T/0.6T… | Mobile Phone/Tablet | 40-43mW | |
| 20 | 0.4T/0.6T… | Mobile Phone/Tablet | 39-42mW | |
| Low VF | 0.4T/0.6T… | Mobile Phone/Tablet | 42-48mW | |
| High Voltage | 0.4T/0.6T… | Mobile Phone/Tablet | 65-75mW | |
| Low Blue Light | 0.4T/0.6T… | Mobile Phone/Tablet | 39-45mW |
0.06W
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 8 | 0603/7-Segment Display | Through-hole LED lamp | 7.5-8.5mW@5mA | 100% Test, High Brightness, Long Service Life |
| 10 | 0603/7-Segment Display | Through-hole LED lamp | 13-16mW@10mA | |
| 12 | 0603/7-Segment Display | Home Appliances/Keyboard Light… | 24-28mW@20mA | Binning, Long Service Life, 100% ESD Test |
| 15 | 0603/7-Segment Display | Home Appliances/Keyboard Light… | 30-36mW@20mA | |
|
31 |
0603/7-Segment Display | Keyboard Light… | 39-45mW@20mA | 100% Test, High Brightness, Long Service Life |
FC
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 20 | COB… | General Lighting | ~78lm/W@150mA | 100% Test,High Brightness, Long Service Life |
| 22 | COB… | General Lighting | ~110lm/W@150mA | |
| 31 | COB… | General Lighting | ~140lm/W@150mA | |
| 32 | COB/Ceramic… | General Lighting | ~175lm@0.5A | |
| 35 | COB/Ceramic… | General Lighting | ~180lm@0.5A | |
| 40 | COB/Ceramic… | General Lighting | ~360lm@1A | |
| 45 | Ceramic… | General Lighting | ~390lm@1A | |
| 55 | Ceramic… | General Lighting | ~420lm@1A | |
| 60 | Ceramic… | General Lighting | ~440lm@1A | |
| 75 | Ceramic… | General Lighting | ~460lm@1A |
VTF
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 15G | 7016 | Smart Wearable | >17.5mW@20mA | High Brightness, Low VF, Flexible, Customized |
| 18B | COB,3535… | Mobile Lighting | >420mW@350mA | |
| 24B | COB,3535… | Mobile Lighting | >500mW@350mA | |
| 26B/G | COB,3535… | Stage Light, Mobile Lighting | >550mW@350mA,>200mW@350mA | |
| 32B | COB,3535… | Stage Light, Mobile Lighting | >600mW@350mA | |
| 38B/G | 5050,3535… | Stage Light, Spotlight | >600mW@350mA,>240mW@350mA | |
| 47B/G | 5050,3535… | Stage Light, Spotlight | >1500mW@1000mA,>550mW@1000mA | |
| 55B | 5050,3535… | Stage Light,Landscape Lighting | >660mW@350mA | |
| 63B/G | 5050… | Stage Light,Spotlight | >1650mW@1000mA,>720mW@1000mA | |
| 72B | 5050… | Stage Light,Landscape Lighting | >1700mW@1000mA | |
| 40W | COB,3535… | Stage Light,Spotlight | >100lm@350mA | |
| 80W | COB,3535... | General Lighting | >160lm@350mA |
UV
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 20 | 3535 | Sterilization and Disinfection | 270~280nm | Energy is Concentrated; Sterilization Efficiency is High |
| 21 | 3535 | Sterilization and Disinfection | 270~280nm | |
| 30 | 3535 | Sterilization and Disinfection | 270~280nm | |
| 42 | 6868 | Sterilization and Disinfection | 270~280nm | |
| 11 | 5050/2835 | Manicure/Mosquito Trapping | 360~370nm | High Brightness, Low VF, Flexible, Customized |
| 13 | 5050/2835 | Manicure/Mosquito Trapping | 360~370nm | |
| 45 | 6868 | Curing | 365/385/395/405nm | |
| 55 | 6868 | Curing | 365/385/395/405nm |
Mini Display
Mini Backlight
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 05L | COB/1010/All-in-one… | P0.6-P1.2 | 0.3V/2.5nm binning | 100% Test, High Brightness, Long Service Life |
| 06L | COB/1010/All-in-one… | P0.6-P1.2 | 0.3V/2.5nm binning | |
| 08L | COB/1010/All-in-one… | P0.6-P1.2 | 0.3V/2.5nm binning |
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 12 | Laptop... | General | Binning: 1.5nm/0.05V/3% | 100% Test, High Precision, High Contrast Ratio, Long Service Life |
| 15 | TV... | Wide Angle | Binning: 1.5nm/0.05V/3% | |
| 25 | TV... | Wide Angle | Binning: 1.5nm/0.05V/3% |
Automotive
| Product Series and Product Types | Applicable Package | Application | Specification | Advantages |
|---|---|---|---|---|
| 14 | Decorative Light… | 30mA | 30-36mW@20mA | 100% Test, Stable Performance, AEC-Q102 Certification, and Service Life is Long |
| 18 | Reading Light… | 90mA | 70-85mW@60mA | |
| 24 | Decorative Light… | 250mA | 197-230mW@120mA | |
| 34 | Daytime Running Light… | 240mA | 190-210mW@120mA | |
| 43 | Daytime Running Light… | 500mA | 530-620mW@350mA | |
| 24(FC) | Daytime Running Light… | 500mA | 230-260mW@150mA | |
| 47(VTF) | Automotive Headlight... | 3.2A | 1500-1800mW@1A |
-
Automotive LED
-
Mini LED
-
Ultraviolet
-
Display Screen
-
Illumination
-
TV Backlight
